TFOCA Tactical Fiber Optic Connector, Connectors, Deployable, Harsh Environment

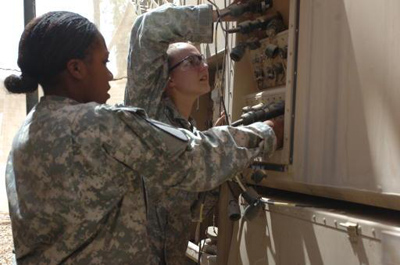

TFOCA connectors are used in-field TFOCA connectors are engineered and tested to satisfy the mechanical and environmental requirements of DOD-1678 and MIL-STD-810C. The TFOCA connectors meet the requirements of MIL-C-83526/12-01. Connector and housing assemblies are hermaphroditic which facilitates genderless coupling with similar TFOCA connectors. This ruggedized TFOCA connector will withstand the repeated connection/disconnections and the handling typically required for rapid fiber optic cable deployment and retrieval in a tactical or commercial harsh environment applications.

The TFOCA connector's unique design and environmentally protected design provides protection from high compressive tensile loads, dust and dirt. In addition, a waterproof seal at every interface insures outstanding resistance to moisture and water penetration. Each TFOCA connector is protected with its own captive hermaphroditic dust cover. The cable termination is designed to firmly anchor the cable to the connector body without special tooling. These connectors are field mountable and repairable with the 1/A TFOCA repair kit or can be ordered as a complete cable/connector assembly.

TFOCA - Technical Specifications:

A typical TFOCA connectorMaterials: Olive drab cadmium over aluminum housing, stainless steel cable retention hardware, elastomer seals
Insertion Loss: (Plug to Plug, Plug to Bulkhead)
Multimode 1.5db max
Singlemode 3.0db max

TFOCA - Mating Durability:

Multimode: 2000 cycles
Singlemode: 1000 cycles

TFOCA Connectors Commonly Used Include:

TFOCA - 2 Channel

Connector Types:
TFOCA Plugs
TFOCA Flange Mount Receptacles
TFOCA Jam Nut Receptacles
TFOCA Jam Nut Strain Relief Receptacles

TFOCA - 4 Channel

Connector Types:
TFOCA Plugs
TFOCA 90° Plugs
TFOCA Flange Mount Receptacles External Mount
TFOCA Flange Mount Receptacles Internal Mount
TFOCA Jam Nut Receptacles External Mount
TFOCA Jam Nut Receptacles Internal Mount
TFOCA Flange Mount Strain Relief Receptacles - External Mount
TFOCA Jam Nut Strain Relief Receptacles - Internal Mount

TFOCA - 6 Channel

Connector Types:
TFOCA Plugs
TFOCA Flange Mount Receptacles External Mount
TFOCA Jam Nut Receptacles External Mount

TFOCA - 12 Channel

Connector Types:
TFOCA Plugs
TFOCA Flange Mount Receptacles External Mount
TFOCA Jam Nut Receptacles External Mount
TFOCA Jam Nut Receptacles Internal Mount
TFOCA Flange Mount Strain Relief Receptacles - External Mount
TFOCA Flange Mount Strain Relief Receptacles - Internal Mount

Termini

FSAF Termini (ForTFOCA-III Connectors)
TFOCA M29504/14 & 15 Termini
TFOCA Termini

MiniTAC Connectors

MiniTAC Plugs
MiniTAC Receptacles

M28876 Connectors

Qualified to MIL-PRF-28876
Low Insertion Loss
Single Mode and Multimode

Rugged RJ45 Connectors

This ruggedized family of RJ-45 receptacles, plugs, back shells and accessories, empowers customers to extend Ethernet platforms into harsh military and industrial operating environments.

F-Link™ Optical Electrical Connectors

Hybrid Fiber Optic / Electrical Connectors and Cables
Multi-channel fiber optic cylindrical connectors have long been the preferred inter-connect solution for military and defense systems.


EZ-Mate™ Multi-Channel Connectors

Multi-Channel Fiber Optic Connectors for Harsh Environment Deployable Systems
The EZ-MATE family of hermaphroditic style fiber optic connectors provides the most comprehensive solution to fiber inter-connect in harsh, deployable or mobilized communications systems.

MHC® II Fiber Optic Connectors

MHCC II Mini Hermafproditic Fiber Optic/Hybrid Connector
Specifically designed specifically to inter-connect fiber optic channels in a small, yet effective, package.

Other Connectors

Mil-ST Connectors (MIL-C-83522)
FS12 Pierside Connectors
Optical-Electrical Hybrid Connectors
Expanded Beam Connectors
