TFOCA - 2 Channel

 How to Purchase Mil Spec M83526

TFOCA Connectors are also known as M83526 connectors.

TFOCA - 2 Channel

Connector Types:
TFOCA Plugs
TFOCA Flange Mount Receptacles
TFOCA Jam Nut Receptacles
TFOCA Jam Nut Strain Relief Receptacles


Parameter Specification

Number of Channels 2 Channels
Optical Loss (Typical) (MM) 0.6 dB
Field Maintainable Yes. Only requires common tools (screwdriver). No special tools required
Fiber Type 50/125 Radiation hard fiber available (phosphorus free)
Insertion Loss 50/125 Multimode fiber -0.6db typical
Operating Temperature -10oC to +75oC
Mud Per MIL-C-83526 /12 and /13
Shock EIA/TIA-455-14, Condition A
Vibration MIL-STD-1344, Method 2005.1
Cable Retention 400 lbs minimum per EIA/TIA-455-6 (applies to plug)
Twist 1000 cycles per EIA/TIA-455-36
Cable Seal Flexing 100 cycles per MIL-STD-1344, Method 2017, Procedure I
Mating Durability 2000 cycles per EIA/TIA-455-21
Water Pressure Per MIL-C-83526 /12 /13 Requirements
Ice Crush/Freezing Water Immersion Per MIL-C-83526 /12 /13 Requirements
Impact Per EIA/TIA-455-2
Crush Resistance 450 lbs minimum per EIA/TIA-455-26
Flammability MIL-STD-1344, Method 1012

TFOCA 1, i, I, One, Legacy Receptacle

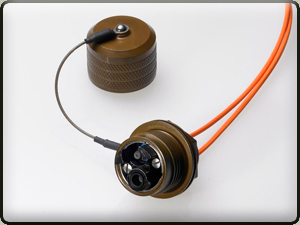

TFOCA Two Channel Receptacle
TFOCA 1, i, I, One, Legacy Connector Close Up

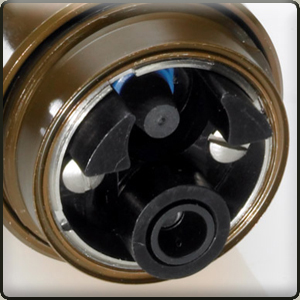

TFOCA Two Channel Connector Close Up

TFOCA 1, i, I, One, Legacy Cable on Reel

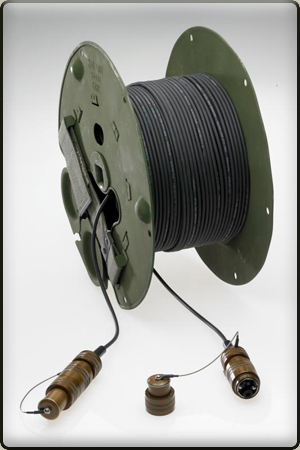

TFOCA Cable on Reel

TFOCA 1, i, I, One, Legacy Cable

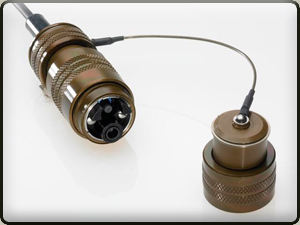

TFOCA Two Channel Connector with Dust Cap
