M28876 Mil Spec C, M, PRF, Standard

M28876 Connector specification covers the performance requirements for circular, plug and receptacle style, multiple removable termini, fiber optic connectors that are for Department of Defense applications and that are compatible with multiple transmission element cables. Fiber optic connectors specified herein cover a family of general purpose, interconnection hardware providing a variety of compatible optical coupling arrangements. Connector parts specified within this specification include connector shells, connector inserts, connector insert retention nuts, connector backshells, and connector dust caps.

MIL-PRF-28876 Connectors, Fiber Optic, Circular, Plug and Receptacle Style, Multiple Removable Termini, General Specification for Revision: E, Dated: 4 October 2004 MIL-PRF-28876/1E Connectors, Fiber Optic, Circular, Plug and Receptacle Style, Multiple Removable Termini, Screw Threads, Wall Mounting, Without Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/2E Connectors, Fiber Optic, Circular, Plug and Receptacle Style, Multiple Removable Termini, Screw Threads, Wall Mounting, With Straight Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/3E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Wall Mounting, With 45° Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/4E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Wall Mounting, With 90° Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/5E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, With Straight Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/6E Connectors, Fiber Optic, Circular, Plug Style, Multiple Removable Termini, Screw Threads, Without Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/7E Connectors, Fiber Optic, Circular, Plug Style, Multiple Removable Termini, Screw Threads, With Straight Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/8E Connectors, Fiber Optic, Circular, Plug Style, Multiple Removable Termini, Screw Threads, With 45° Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/9E Connectors, Fiber Optic, Circular, Plug Style, Multiple Removable Termini, Screw Threads, With 90° Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/10F Connectors, Fiber Optic, Circular, Plug Style, Multiple Removable Termini, Dust Cover, Screw Threads, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/11E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Jamnut Mounting, Without Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/12E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Jamnut Mounting, With Straight Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/13E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Jamnut Mounting, With 45° Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/14E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Jamnut Mounting, With 90° Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/15E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Dust Cover, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/26D Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Wall Mounting, With Short Backshell, Non-Environment Dated: 4 October 2004 MIL-PRF-28876/27D Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, Straight Backshell, Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/28D Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, 45° Backshell, Screw Threads, With Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/29E Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, 90° Backshell, Screw Threads, With Strain Relief, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/30 Connectors, Fiber Optic, Circular, Plug and Receptacle Style, Multiple Removable Termini, Screw Threads, Light Duty Backshell, Environment Resisting Dated: 4 October 2004 MIL-PRF-28876/31 Connectors, Fiber Optic, Circular, Receptacle Style, Multiple Removable Termini, Screw Threads, EMI Retention Nut Dated: 4 October 2004
	M28876 Four Channel Connector Close Up

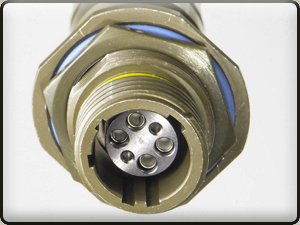

	M28876 Four Channel Recepticle

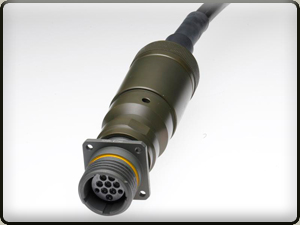

	M28876/1 Connector With Backshell


	M28876/7 Connector

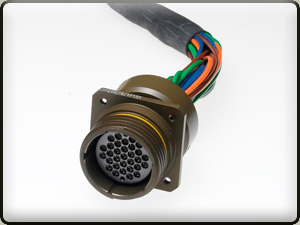

	M28876-1F 31 Channel Close Up

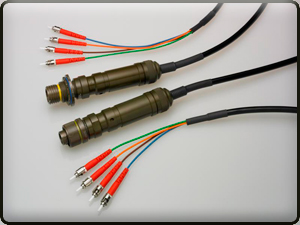

	M28876 Connectors

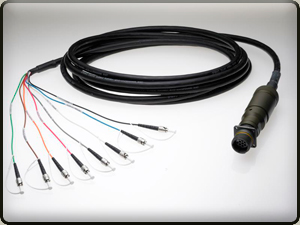

	M28876-1 8 Channel Connector to ST with Backshell

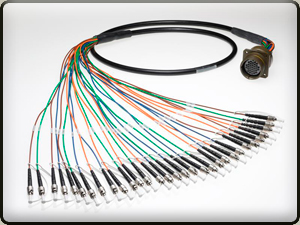

	M28876-1F 31 Channel Receptacle to ST Assembly

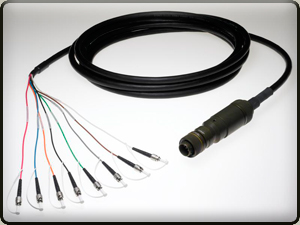

	M28876/7 8 Channel Connector to ST Assembly
