TFOCA 12 Channel

How to Purchase Mil Spec M83526

TFOCA connectors are also known as M83526 connectors.

TFOCA - 12 Channel

Connector Types:
TFOCA Plugs
TFOCA Flange Mount Receptacles External Mount
TFOCA Jam Nut Receptacles External Mount
TFOCA Jam Nut Receptacles Internal Mount<
TFOCA Flange Mount Strain Relief Receptacles - External Mount
TFOCA Flange Mount Strain Relief Receptacles - Internal Mount

Parameter Specification

Insertion Loss (Multimode) Typical - 0.30dB / Max - 0.75dB
Insertion Loss (Single Mode) Typical - 0.40dB / Max - 0.75dB
Back Reflection (Single Mode-UPC Polish) Typical - -50dB / Max - -40dB
Operating Temperature -46° C to + 71° C
Storage Temperature -55° C to + 85° C
Mud 5 minute immersion, clean with water (per MIL-C-83526/12 /13 requirements)
Water Pressure MIL-STD-810, Method 512.4, 1m, 48hr
Ice Crush DOD-STD-1678, Method 4050
Humidity DOD-STD-1678, Method 4030, 10 Cycles
Flammability MIL-STD-1344, Method 1012
Vibration (Operational) MIL-STD-1344, Method 2500.1
Shock EIA/TIA-455-14, Condition A
Mating Durability 2,000 cycles per EIA/TIA-455-21
Cable Seal Flexing 100 cycles per MIL-STD-1344, Method 2017, Procedure 1
Twist 1,000 cycles per EIA/TIA-455-36
Cable Retention 400 pounds minimum per EIA/TIA-455-6, 1hr (applies to plug and strain relief receptacles)
Impact EIA/TIA-455-2
Crush Resistance 450 pounds minimum per EIA/TIA-455-26
EMI Shielding Effectiveness (Receptacle Only) > 60dB, 15KHz to 10GHz

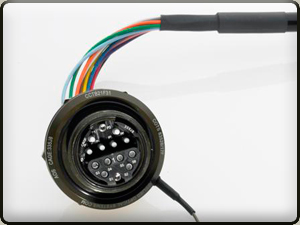

TFOCA II 12 Channel Receptacle
TFOCA Twelve Channel Flange Receptacle

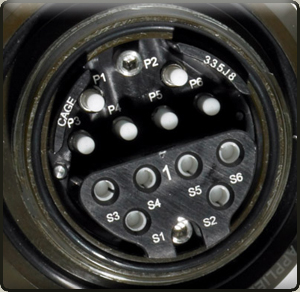

TFOCA II - 12 Twelve Channel Connector Close Up
TFOCA Twelve Channel Connector Close Up

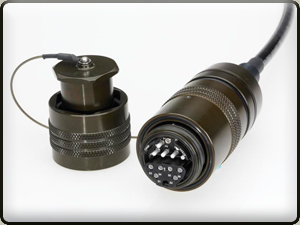

TFOCA II 12 Channel Connector with Dust Cap
TFOCA Twelve Channel Connector with Dust Cap

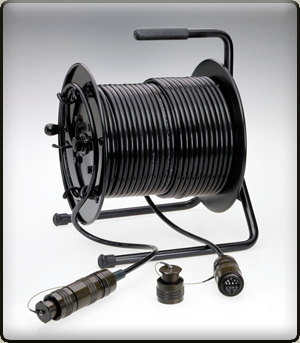

TFOCA II 12 Channel Cable on Reel
TFOCA Twelve Channel Cable on Reel

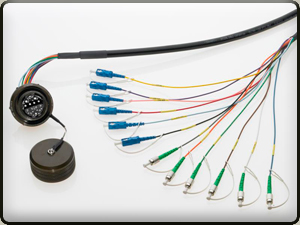

TFOCA II 12 Channel Assembly
TFOCA Twelve Channel Assembly
