M83522 - TFOCA Mil Spec C, M, PRF, DTL

How to Purchase Mil Spec M83522

The M83522 specification defines the characteristics, performance and testing criteria for single terminus fiber optic connectors. The connectors described herein cover families of both bulkhead and cable termination configurations. The connectors are supplied under a MIL-STD-790 reliability assurance program. Statistical process control (SPC) techniques are required in the manufacturing process of these connectors to minimize variation.

MIL-C-83522
Connectors, Fiber Optic, Single Terminus, General Specification for Revision: D,
Dated: 25 June 1992


MIL-C-83522D Amendment 1
Connectors, Fiber Optic, Single Terminus, General Specification for
Dated: 11 May 1995

MIL-C-83522/1F
Connector, Plug, Fiber Optic, Single Terminus, Threaded, (Step-Down Nose Interface), Lensless, Epoxy, for 50/125 µm, 62.5/125 µm, and 100/140 µm
Dated: 17 May 2006

MIL-C-83522/2G
Connector, Plug, Fiber Optic, Single Terminus, Threaded, (Straight Nose Interface), Lensless, Epoxy, for 50/125 µm, 62.5/125 µm, and 100/140 µm
Dated: 17 May 2006

MIL-C-83522/3G
Connector, Adapter, Fiber Optic, Bulkhead Mount, for Single Fiber
Dated: 17 May 2006

MIL-C-83522/4F
Connector, Receptacle, Fiber Optic, Single Terminus, Threaded, Receptacle, Low Profile Parallel PC Mount
Dated: 17 May 2006

MIL-C-83522/5E
Connector, Receptacle, Fiber Optic, Bulkhead Mount, for Single Fiber
Dated: 17 May 2006

MIL-C-83522/6D Notice 1
Connector, Plug, Fiber Optic, Single Terminus, Threaded, Expanded Beam Lens, Epoxy, for 50/125 F FM, 62.5/125 F FM and 100/140 F FM (Cancellation Notice)
Dated: 17 August 1999

MIL-C-83522/7C
Connector, Receptacle, Fiber Optic, Single Terminus, Threaded, Parallel PC Mount
Dated: 17 May 2006

MIL-C-83522/8C
Connector, Receptacle, Fiber Optic, Single Terminus, Threaded, Bulkhead, Hex Nut Mount
Dated: 17 May 2006

MIL-C-83522/9 Notice 1
Connector, Fiber Optic, Receptacle, PC Mount Active (Used with MIL-T-29504/4 Pin Terminus, Size 16 (Cancellation Notice)
Dated: 17 August 1999

MIL-C-83522/10 Notice 1
Connector, Fiber Optic, Receptacle, Flange Mount Active (Used with MIL-T-29504/4 Pin Terminus, Size 16 (Cancellation Notice)
Dated: 17 August 1999

MIL-C-83522/11 Notice 1
Connector, Fiber Optic, Adapter, in-Line-Cable, Panel Mount (Used with MIL-T-29504/4 Pin Terminus, Size 16) (Cancellation Notice)
Dated: 17 August 1999

MIL-C-83522/15 Notice 1
Connectors, Fiber Optic, Plug-Receptacle-Adapter Style, Fixed Single Terminus Environmental Fsma Style, Crimp and Cleave (Cancellation Notice)
Dated: 17 August 1999

MIL-C-83522/16B w/Amendment 1
Connector, Fiber Optic, Single Terminus, Plug, Bayonet Coupling (ST Style), 2.5 Millimeters Diameter Ferrule, Epoxy
Dated: 17 August 2004

MIL-C-83522/17B w/Amendment 1
Connector, Fiber Optic, Single Terminus, Adapter, Bayonet Coupling (ST Style), 2.5 Millimeter Diameter Ferrule, Bulkhead Panel Mount
Dated: 26 May 2005

MIL-C-83522/18B
Connector Fiber Optic, Single Terminus, Receptacle, Bayonet Coupling (ST Style), 2.5 Millimeter Diameter Ferrule, PC Mounting
Dated: 11 May 1995

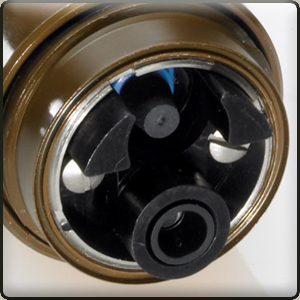

M83522 Connector Close Up
M8352 ST Connector with Boot Removed

M83522 Two Channel Connector

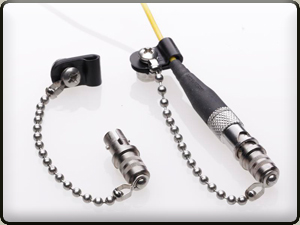

M83522 ST Connector with Dust Cap

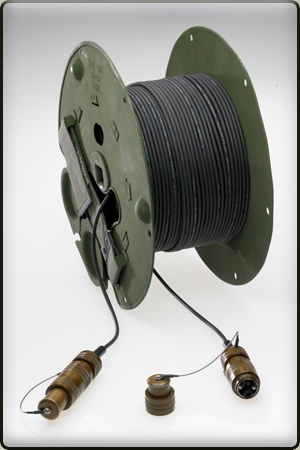

M83522 2 Channel Cable on Reel

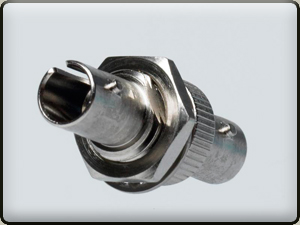

M83522 ST Adapter Coupler

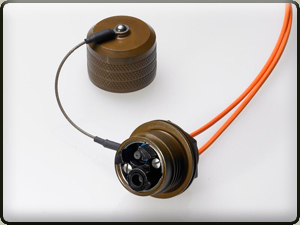

M83522 Two Channel Receptacle
